1 Mounting

Pre-Requisites

    Confirm clear line of sight between KORUZA v2 Pro units - ensure no obstacles are in the way, consider trees, construction of new buildings, etc.
    Confirm the installation locations for two units are at the distance not less than 20 m and up to 150 m apart.
    Confirm stable and vibration-free mounting locations.
    Confirm all the required cable routes are available.
    Make sure your installation can be done safely!
    Choose a mounting location such that operation integrity is ensured - near roof edge or similar to avoid interruptions of transmission, and whenever possible choose a weather protected location.
    Ensure safety compliance: Ensure that appropriate warning signs are properly placed and posted at the equipment site or access entry.
    Ensure compliance with laws, regulations, codes (electrical, building, fire codes and similar), and agreements.

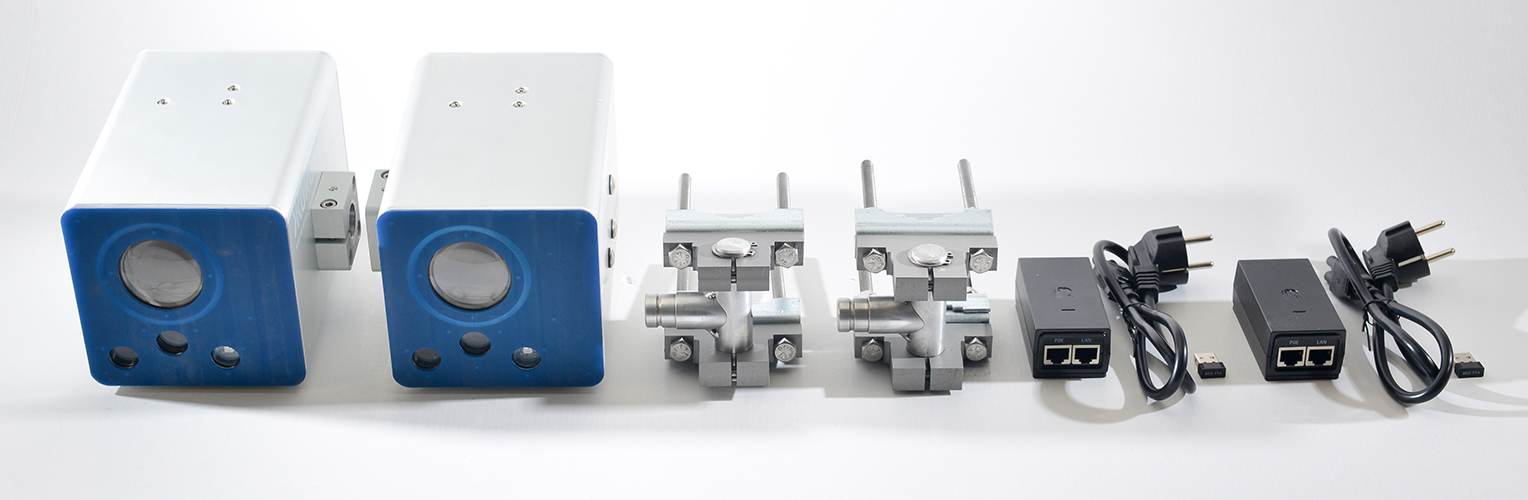

Single Link Package

    Koruza v2 Pro: 2 units
    Mount: 2 pieces
    PoE Power Supply
    PoE Power Cable (country specific)
    USB WiFi Module
Set of items for single link installation.

Toolset

For the installation of KORUZA v2 Pro units, the following tools are required:
    13 mm Wrench
    2.5 mm Hex Key
    4 mm Hex Key

Installation Summary

    1.
    Install the mount.
    2.
    Power up the unit.
    3.
    Connect a smartphone or a computer to unit’s WiFi.
    4.
    Coarsely aim the units and tighten screws.
    5.
    Connect to your management interface and click on the image where the opposite unit is.
    6.
    Management IR link established. - This feature shall be available soon.
    7.
    Use arrow keys to align the units. (Soon auto alignment will be available and thus replacing this step with Auto-alignment and tracking.)

1. Mounting the Unit

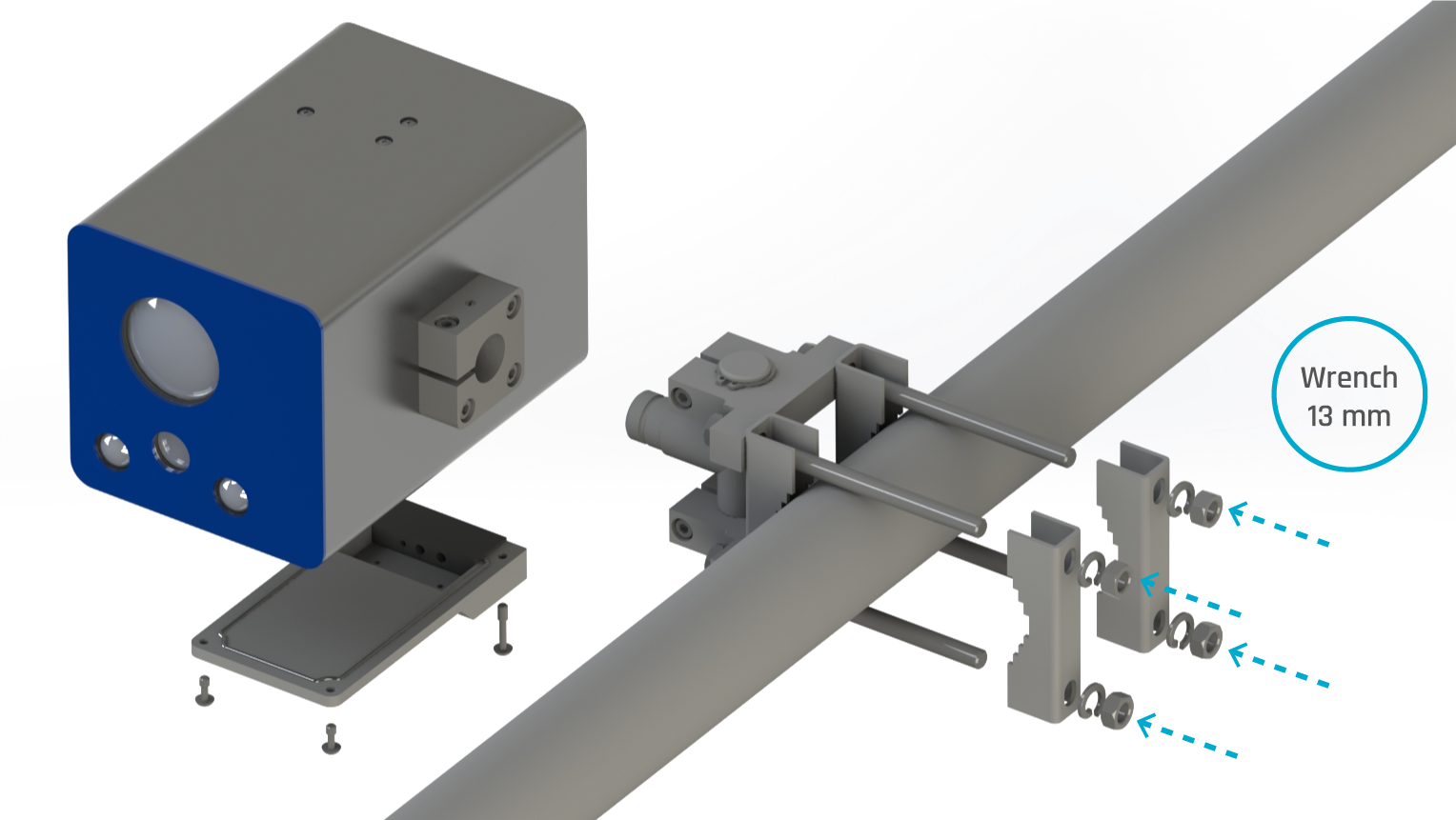

Mounting on a vertical pole
Mounting on a horizontal pole

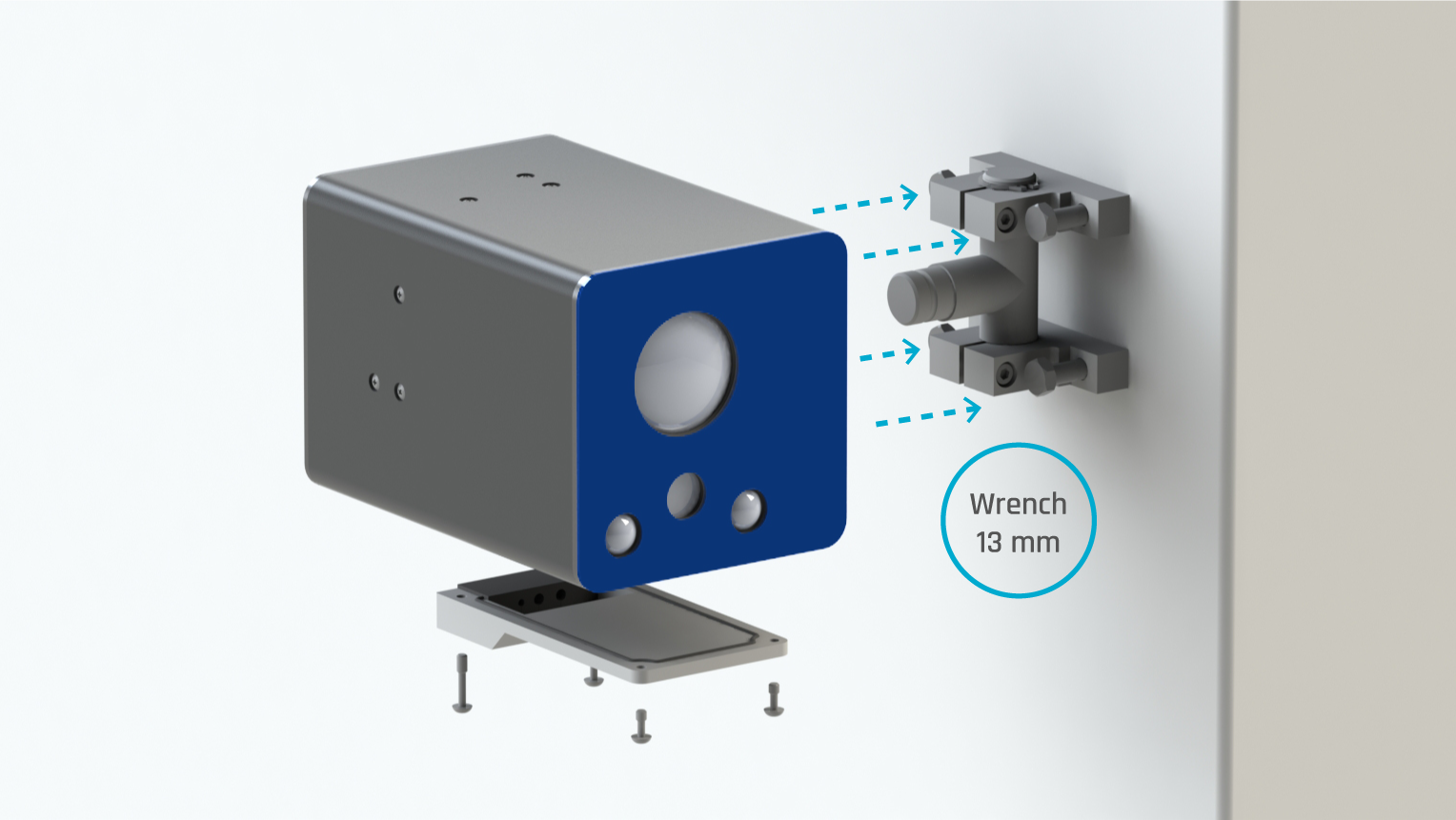

Mounting on a wall (4 screws 13 mm and 4 wall plugs 13 mm)

2. Mounting the Cables

Cable
Description
1
Management and power cable
2

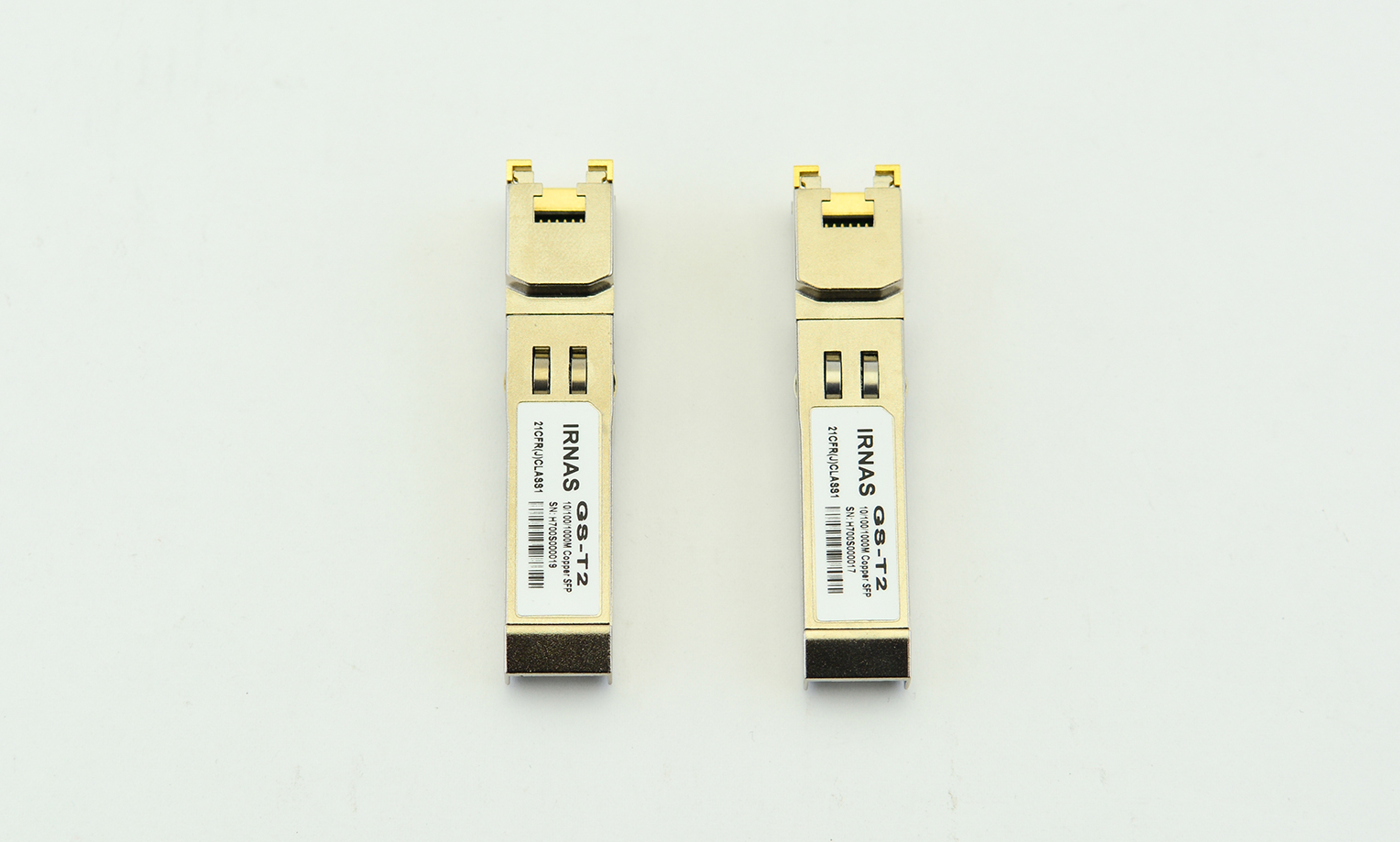

Data cable/fibre to SFP

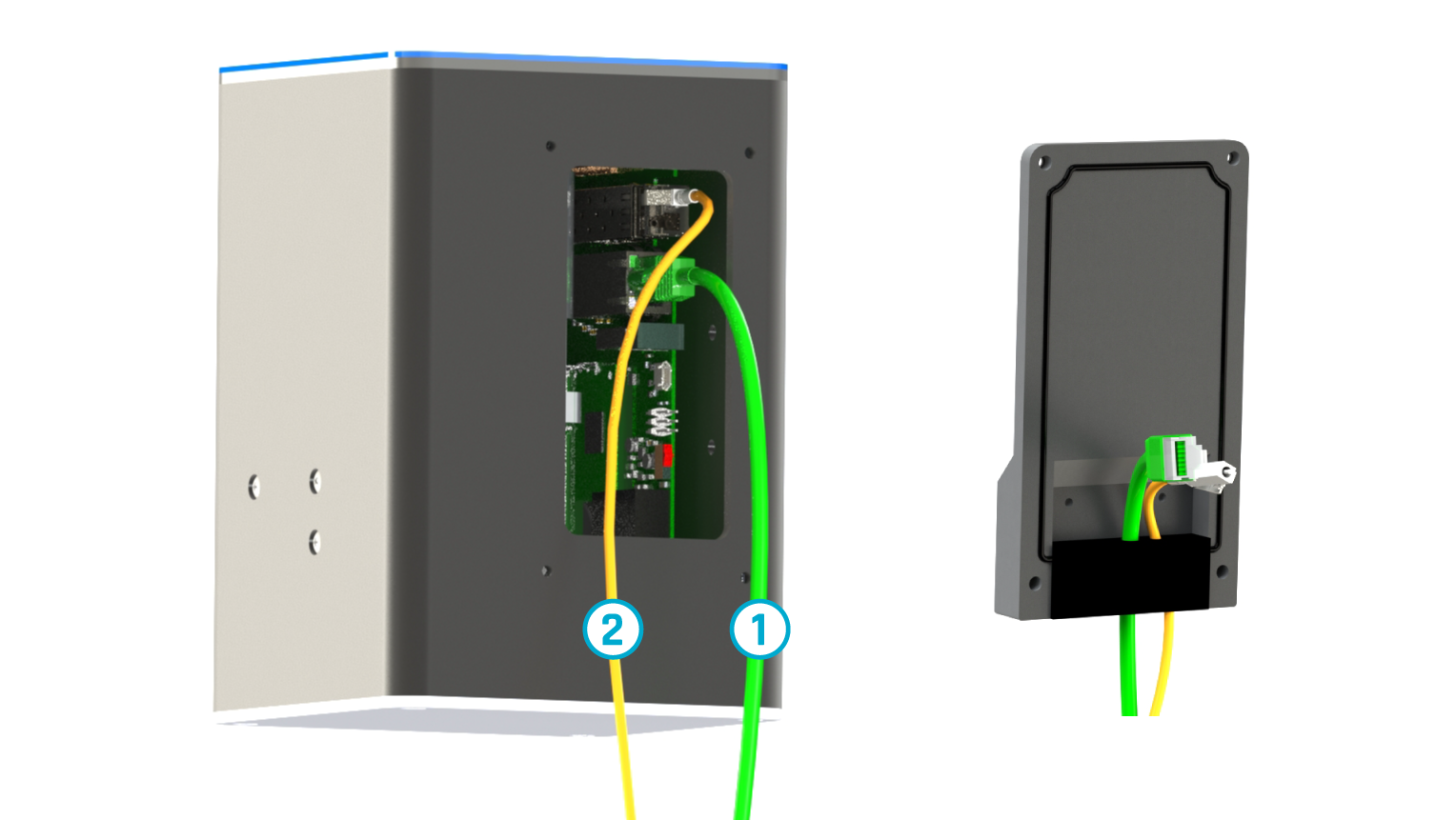

Connecting the cables

3. Closing the Lid

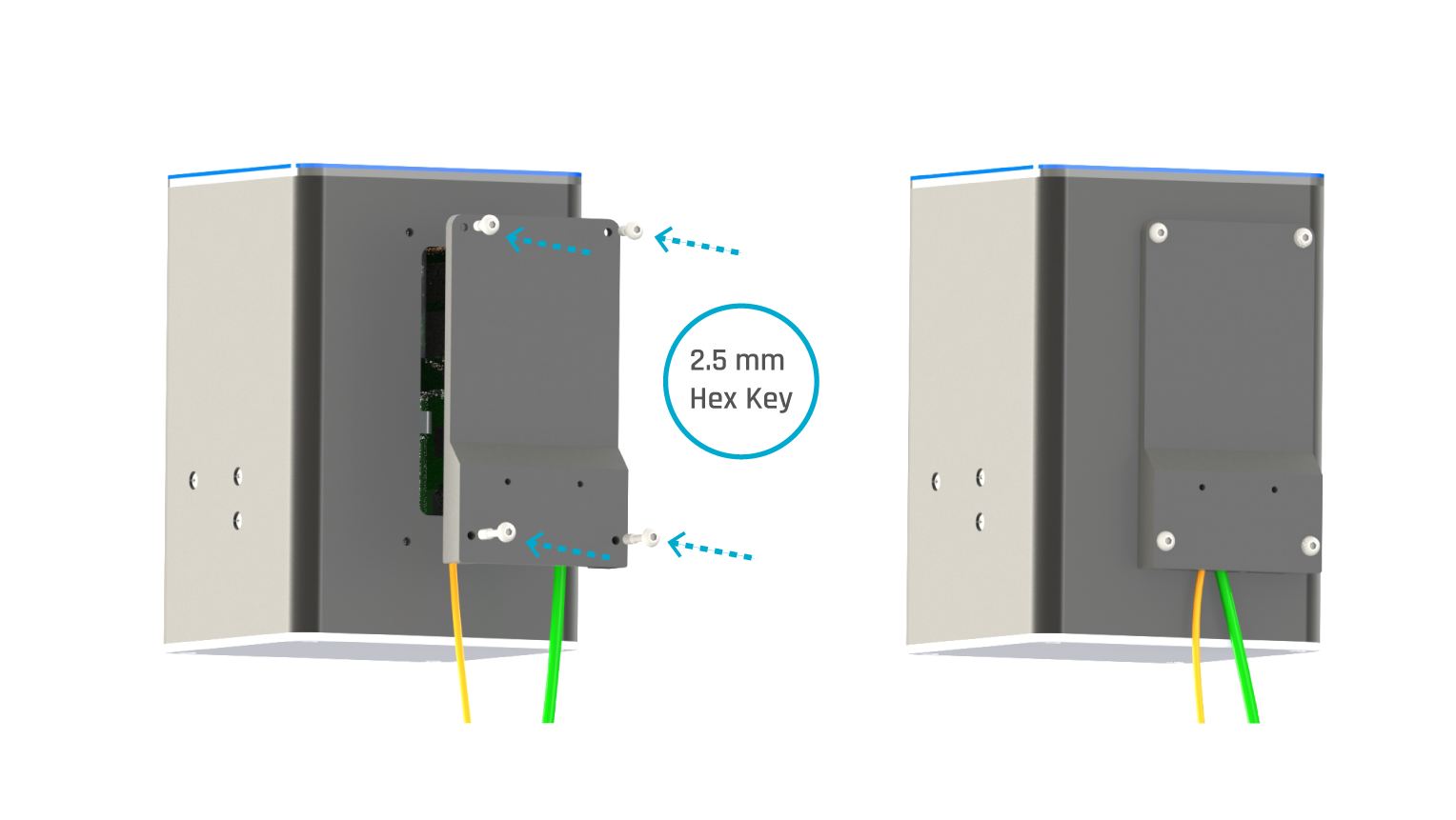

Closing the lid
